StompLight DMX Lighting Effect Pedal – Professional

StompLight® DMX Lighting Effect Pedal - Professional - The Twelfth Fret

StompLight® DMX Lighting Effect Pedal – Professional – White

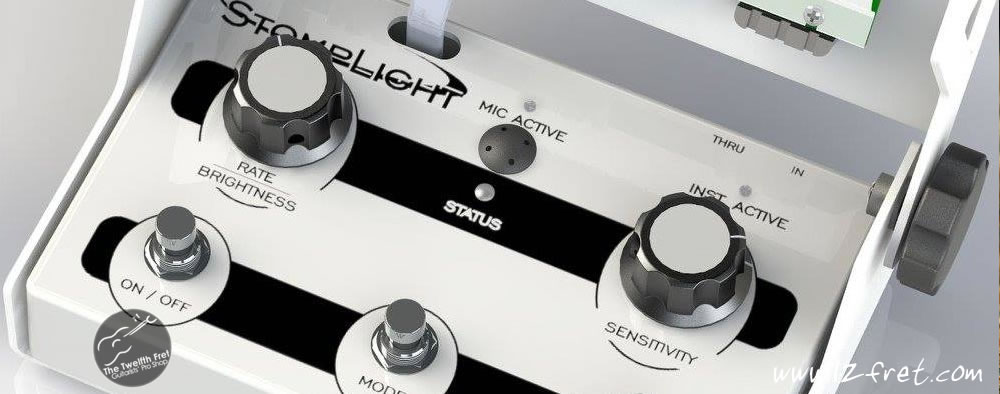

At the heart of the StompLight Professional Lighting Effect Pedal, the world’s first lighting effect pedal that is both an actual stage light and a DMX controller.

StompLight takes seconds to set up and with the tap of a foot produces brilliant sound responsive lighting. StompLight fits into a gig bag or onto a pedal board and is designed to be invisible on stage. StompLight products are DMX 512 compatible and can be daisy chained together with plain XLR mic cables for a larger stage lighting experience.



 Read Our Stomplight Review

The StompLight Li Ion Rechargeable Power Bank powers the StompLight Pro for up to seven hours on a single charge eliminating on stage clutter or hassle of finding wall power.

  • The Color Wheel: Cycles through all the colour variations with adjustable speed and brightness. The ultimate “turn it on and leave it” effect for a performance.
  • Select a Solid Colour:  Choose a colour as the mood hits you and wash the stage. Colours include Ice Blue, Rasta Green, Purple People Eater and Demon Red. This mode is also great for 1) up-lighting your band banner 2) up-lighting your killer amp/rig on stage. You can also choose a colour from the Colour Wheel and add it to the Solid Colour palette.
  • Microphone Active (aka Color Organ Mode):  This mode utilizes the built-in microphone and internal 7-band spectrum analyser to create lighting that responds to your playing and frequency of the audio you produce.
  • Instrument Input /Mixer Input: Plug your electric guitar or bass, keyboard, microphone, metronome or mixer into StompLight’s 1/4″ input. Adjust the gain of the input using the Gain Knob and generate exciting and sound responsive lighting. This mode incorporates a 7-band spectrum analyser that produces 8 different colour/frequency effects.
  • Strobe: Switch to the classic strobe effect with adjustable speed and brightness for dance parties, raves and haunted houses. People with photosensitive epilepsy and photo-sensitivity should refrain from using this mode.

Plug in a Guitar, Bass, Keyboards, Mixer or line out instrument and create an exciting sound responsive light show that showcases your playing.

StompLight DMX Pro Features:

  • Collapsible 180-degree adjustable lighting array actually built onto an effect pedal. Your stage lighting now fits into your gig bag.
  • DMX 512 compatible
  • Optional Rechargeable StompLight® Power Bank for “off the grid” use
  • Optional 1.6 ounce StompLight®
  • Pal DMX Lighting Slave for quick addition of amazing stage lighting
  • Atmel ATMEGA Processor with LED Engine and Advanced COB (Chip on Board Technology)
  • Best of Class Cree LEDs with optical control, RGB color mixing, at 300 lumens with 50,000 hour lifespan = (16,000) 3 hour gigs
  • Powder coated custom engineered aluminium enclosure
  • Robust clam shell design for ease of staging, strike and portability
  • Sound and Input Active –  utilizing ¼ “ input and output connectors
  • 7-channel spectrum analyser with a built-in microphone
  • Adjustable colour, brightness, sensitivity, input gain and effect change rate
  • Vintage Daier “Moog Synth” control knobs
  • Quality foot-switches and potentiometers
  • 3-pin DMX connectors for daisy chaining with StompLight® Pal and other DMX products
  • 12 volt 1.5 amp power requirement with included “center position” wall wort power adapter
  • Quickly mounts onto a mic stand using StompLight Mic Stand Adapter (Female) with the provided mounting screws.
  • Length: 4.75” (12cm) x Width 8” (20.5 cm) x Height 3” (7.5cm)
  • Weight:  4.2 pounds
  • Quick Start Guide
  • Designed and Assembled USA
  • 1 year warranty
  • US Patents – No. 9,185,776 & 9,462,654 & Design D789,896
  • This device complies with Part 15 of the FCC rules. IC and CE compliant.
  • Two colours: Matte Black or White
