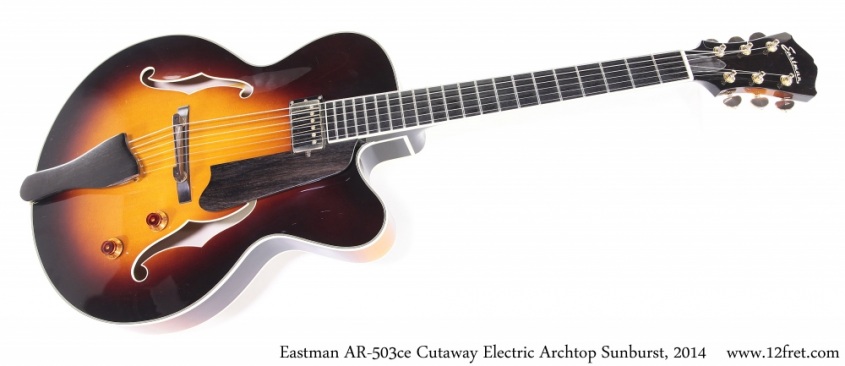

SOLD!!! Eastman AR-503ce Cutaway Electric Archtop Sunburst, 2014

Brand:

Instrument Categories: , , ,

This Eastman AR-503ce Archtop Cutaway Electric in sunburst, built during 2014 and in very good, clean condition. Generally positioned as a lower cost model, the Eastman AR-503ce uses a traditional full-depth single-cutaway design with arched solid, carved Spruce top, but with laminated Maple for the sides and arched back. Laminated Maple is used in these areas not just to lower production costs, but primarily to add feedback resistance as stage volumes rise. The neck is three pieces of solid Maple for stability, and Ebony is used for the bound head plate, bound fingerboard, pickguard, tailpiece and bridge.

This example is in very good clean condition with just light wear to the frets and finish. While it’s been played, it has also been well cared for.

A Godin TRIC multi-fit case is included.

Eastman AR-503ce Specifications:



  • Neck Material: 3 Piece Maple
  • Fingerboard: Ebony
  • Fingerboard Radius: 12″
  • Neck Profile: Traditional Even C
  • Nut: Bone 1 3/4″
  • 1st Fret String Height: .022″
  • 12 Fret String Height: Bass .078″ & Treble .062″
  • Fretwire: 20 Medium Jumbo Jescar 47104
  • Scale Length: 25″
  • Body Style: Venetian
  • Body Dimensions: 16 3/16” x 2 9/16
  • Body Top: Solid Spruce
  • Body Back/Sides: Laminated Flamed Maple
  • Truss Rod: Single Acting
  • Binding: Top 5 ply, Back 3 ply, Neck 1 ply, F holes 1 ply
  • Binding Material: Ivoroid
  • Logo: Pearl Headstock
  • Finish: Gloss Finish
  • Hardware Color: Nickel
  • Pickguard: Ebony
  • Tailpiece: Ebony on Brass
  • Bridge: Adjustable Ebony Bridge
  • Tuners: Pingwell RM-1271 GVR 3+3
  • Knobs: Amber Speed Knobs
  • Neck Pickup: Seymour Duncan
  • Pickup Height: 3/32″
  • Pickup Frame: Black Plastic
  • Capacitors: .047μF
  • Potentiometers: 500k Linear Taper
  • Output Jack: Switchcraft
  • Strings: D’Addario NYXL .012 – .052

Price: $1,450.00 CAD
  • Model: AR-503ce
  • Year: 2014
  • Finish Gloss Sunburst
  • Class: Used
  • Serial Number: 11045055, built 2014 in Beijing China
  • Country of Origin: China
  • Condition: Very Good
  • Date Posted: 17/03/2022

  • This instrument has been sold
  • Consignment Item

  • Including Semi Rigid Padded case
  • Instrument Weight: 5.324lbs 2.42kg
  • Scale Length: 25in 635mm
  • Nut Width: 1.741in 44.23mm
