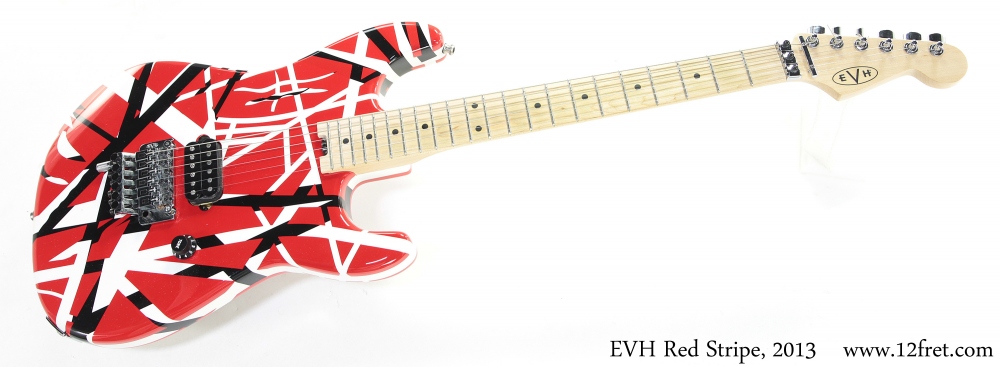

❌SOLD❌ EVH Red Stripe, 2013


Instrument Categories: , , ,

Instantly recognizable, the EVH Red Stripe draws from the guitar the late Eddie Van Halen used on his breakthrough recordings and performances. The original instrument was constructed from an unfinished body and neck set by Boogie Bodies, and added a used Fender Stratocaster trem and Gibson humbucker – plus the highly distinctive paint scheme that was immediately copied by many players.

Over the years, Van Halen has partnered with a number of companies – Kramer, Ernie Ball Music Man, Peavey, Charvel and now Fender, to produce instruments and amplifiers based on what he found useful in the real world of rock guitar performance.

Under a license agreement between EVH and Fender Musical Instrument Corporation (FMIC), the EVH Red Stripe is built in the Ensenada, Mexico Fender plant along other high quality instruments. Featuring a Basswood body, one-piece quartersawn Maple neck, one pickup and of course a Floyd Rose double-locking trem system, the EVH Red Stripe is a dedicated Rock machine!

This EVH Red Stripe example dates to 2013 and is in great condition with very little wear of any kind. The bridge is currently set up to rest on the body; this prevents the entire guitar from going wildly sharp should one string break, but also prevents pulling up on the bar. This arrangement is a setup choice and can be readily altered should the player require it.

The original Fender hard shell case is included.

EVH Red Stripe Specifications:

  • Model Number: 5107902503
  • Series: Striped Series
  • Color: Red with Black Stripes
  • Number of Strings: 6
  • Orientation: Right-Hand
  • Body Finish: Gloss Urethane
  • Body Shape: Other
  • Body Material: : Basswood
  • Bridge Pickup: EVH® Wolfgang® Humbucking
  • Pickup Color: Black
  • Controls: Volume (500K EVH® Bourns® Low Friction Pot) with Treble Bleed Circuit
  • Pickup Switching: None
  • Pickup Configuration: H
  • Neck Material: Quartersawn Maple
  • Neck Construction: Bolt-On with Graphite Reinforcement
  • Neck Thickness: .790″ at 3rd Fret & .810″ at 12th Fret
  • Neck Finish: Hand-Rubbed Satin Urethane
  • Neck Shape: EVH® Modified “C” Backshape
  • Scale Length: 25.5″ (648 mm)
  • Fingerboard Radius: 12″-16″ Compound Radius (304.8 mm to 406.4 mm)
  • Fingerboard Material: Maple
  • Number of Frets: 22
  • Fret Size: Jumbo
  • Nut Material: Floyd Rose® R3 Locking
  • Nut Width: 1.6875″ (42.86 mm)
  • Position Inlays: Black Dot
  • Truss Rod Nut: Heel-Mount Truss Rod Adjustment Wheel
  • Truss Rod Wrench: 2.5 mm Hex
  • String Trees: Floyd Rose® Retainer Bar
  • Headstock: Licensed Fender® Stratocaster®
  • Neck Plate: 4-Bolt Standard
  • Bridge: EVH®-Branded Floyd Rose® Locking Tremolo with EVH® D-Tuna®
  • Hardware Finish: Chrome
  • Tremolo Arm: Floyd Rose® 1000 Series Locking
  • Tremolo Block: Brass
  • Tuning Machines: EVH®-Branded Gotoh®
  • Control Knobs: Black Stratocaster®-Style Skirt (Labeled “Tone”)
  • Miscellaneous
  • Strings: EVH® Nickel Plated Steel (.009-.042 Gauges)
  • Strap Buttons: Oversized

Price: $1,299.99 CAD
  • Model: EVH Red Stripe
  • Year: 2013
  • Finish Red Stripe
  • Class: Used
  • Serial Number: EVH1303589, built during 2013 in Ensenada Mexico
  • Country of Origin: Mexico
  • Condition: Very Good
  • Date Posted: 10/05/2022

  • This instrument has been sold
  • Consignment Item

  • Including original Hard case
  • Instrument Weight: 7.876lbs 3.58kg
  • Scale Length: 25.5in 647.7mm
  • Nut Width: 1.716in 43.59mm
